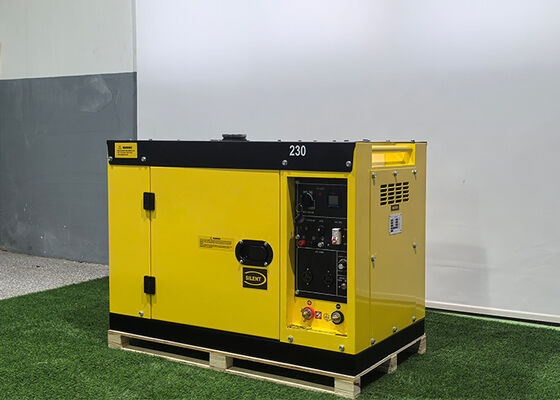

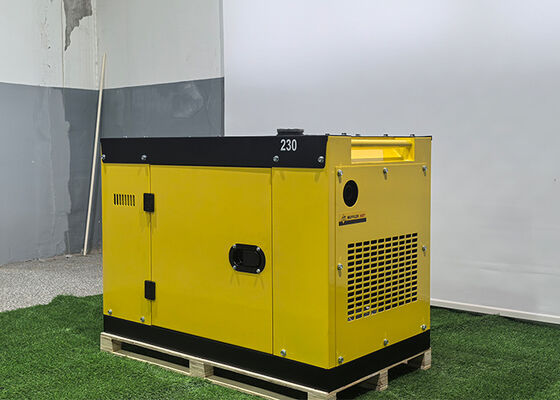

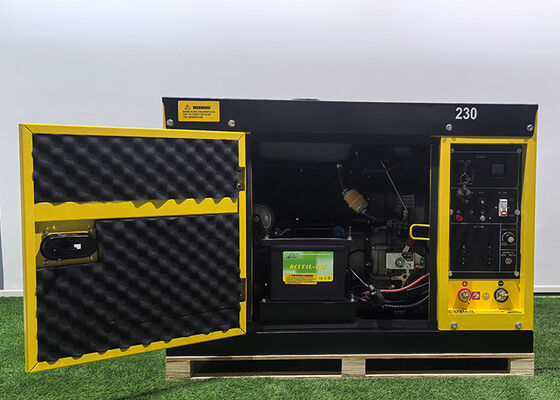

Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
| Model | GD8500ESW | |
| Genset | Rated Frequency(Hz) | 50 60 |
| Rated Power(kw) | 2.0 2.5 | |
| Rated Voltage(V) | 220 120/240 | |
| Power Factor | 1 | |
| Phase | Single Phase | |
| Welder | Voltage Without Load(v) | 65-70 |
| Running Voltagre(V) | 25-30 | |
| Rated soldering DC Current(A) | >230 | |
| Current Adjusting Range(A) | 0-230 | |
| Electrode Diameter(mm) | 1.6-4.0 | |
| Engine | Engine Type | 192FAE |
| Engine speed(rpm) | 3000 3600 | |
| Structure type | Direct Injection,single cylinder,four stroke,air cooled | |
| Starting System | Electrical Start | |
| Genset | Fuel Tank Capacity(L) | 13.5 |
| Continuous Running Time(h) | 10 | |
| Noise(7m)dB(A) | 72 | |
| N.W/G.W(kgs) | 175/185 | |
| Package(L*W*H)(mm) | 950x560x750 | |
Specifications:
Welder generator current capacity 220A , Generator power 2.5KW
Dimension 950x560x750mm Net Weight 175KGS
Quantity for 20 foot container 72 sets
Quantity for 40 foot container 114 sets
100% copper alternator
CE and ISO certification
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
